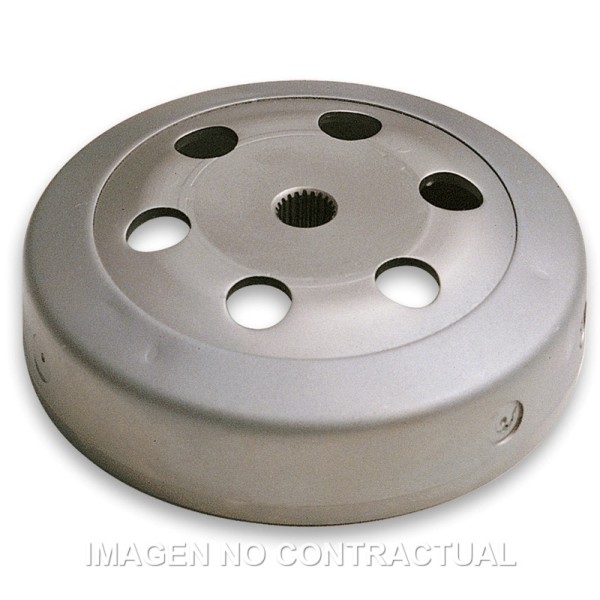

Campana embrague Clutch Bell Ø interno 107 mm y peso 508 gr.
Características técnicas
- Campana en acero dulce P04 , obtenida por moldeado en frío;
- Bulón central en acero al carbono extraído de barra y añadido mediante soldadura Tig;
- Chapa antivibrante estampada y fijado mediante 3 puntos de soldadura puestos a 1200 uno del otro;
- Equilibrado seguido al 100 % en toda la producción;
- Tratamiento térmico de nitruración mórbida
COMPATIBILIDADES:APRILIA MOJITO/HABANA 50 2T CUSTOM (ENG. APRILIA) AC CARB E1 (1999 - 2002)
APRILIA MOJITO/HABANA 50 2T CUSTOM (ENG. APRILIA) AC CARB E2 (2003 - 2003)
APRILIA SCARABEO 50 2T CLASSIC AC CARB E4 (2018 - 2020)
APRILIA SCARABEO 50 2T STREET AC CARB E4 (2018 - 2020)
APRILIA SCARABEO 50 4T 2V AC CARB E2 (2002 - 2006)
APRILIA SCARABEO 50 4T 2V AC CARB E3 (2006 - 2009)
APRILIA SCARABEO 50 4T 4V AC CARB E3 (2009 - 2017)
APRILIA SPORT CITY ONE 50 2T AC CARB E3 (2008 - 2010)
APRILIA SPORT CITY ONE 50 4T AC CARB E3 (2008 - 2010)
APRILIA SR 50 2T R LC R CARB E4 (2018 - 2020)
APRILIA SXR 50 4T AC IGET E5 (2021 - 2025) Para 5214111
BAOTIAN TANCO 9/12 4T 50 (2007 - 2012)
BAOTIAN ROCKY 4T 50 (2007 - 2012)
BAOTIAN REBEL 4T 50 (2007 - 2012)
BAOTIAN BT50QT-9 ECO BIKE 50 (2006 - 2008)
BSV ZX DIO 50 (1990 - 1993)
BSV ZX DIO 2T 50 (1994 - 1995)
BSV GP DIO 50 (1990 - 1992)
BSV SP DIO TT/DT 50 (1990 - 1992)
CAGIVA CITY 50 (1991 - 1994)
DERBI GP1 50 2T RACE LC CARB E2 (2005 - 2007)
DERBI GP1 50 2T OPEN LC CARB E3 (2006 - 2010)
DERBI VARIANT 50 2T SPORT AC CARB E3 (2012 - 2017)
GILERA DNA 50 2T LC CARB E1 (2000 - 2001)
GILERA DNA 50 2T LC CARB E2 (2002 - 2006)
GILERA ICE 50 2T AC CARB E2 (2002 - 2005)
GILERA EASY MOVING 50 2T AC CARB (1996 - 1996)
GILERA RUNNER 50 2T DD LC CARB REAR DISC BRAKE E1 (1997 - 2001)
GILERA RUNNER 50 2T SP LC CARB E2 (2002 - 2017)
GILERA RUNNER 50 2T LC IE PURE JET E2 (2004 - 2007)
GILERA STALKER 50 2T DD AC CARB REAR DISC BRAKE E1 (1997 - 2005)
GILERA STALKER 50 2T DT AC CARB REAR DRUM BRAKE E1 (1997 - 2005)
GILERA TYPHOON 50 2T X AC CARB (1998 - 1999)
HONDA SA 50 VISION 2T AC CARB (1988 - 1995)
HONDA SFX 50 2T AC CARB (1995 - 2000)
HONDA SGX 50 SKY 2T AC CARB (1997 - 2001) Para 5214111
HONDA SGX 50 SKY 2T S AC CARB (1997 - 2001) Para 5214111
HONDA SH 50 SCOOPY 2T AC CARB (1996 - 2001)
HONDA SJ 50 BALI 2T AC CARB (1993 - 1999)
HONDA SRX 50 SHADOW 2T AC CARB (1997 - 1999)
HONDA SZX 50 X8R 2T S SUPER SPORT AC CARB (1998 - 2001)
HONDA SZX 50 X8R 2T X CROSS SPORT AC CARB (1998 - 2001)
KYMCO AGILITY 50 2T 16 PLUS AC CARB E3 (2014 - 2017)
KYMCO AGILITY 50 4T 10 AC CARB E2 (2005 - 2012)
KYMCO AGILITY 50 4T 12 AC CARB E2 (2005 - 2017)
KYMCO AGILITY 50 4T RS 12 AC CARB E2 (2009 - 2013)
KYMCO AGILITY 50 4T 12 AC CARB E4 (2019 - 2020) Para 5214111
KYMCO AGILITY 50 4T CITY 16 AC CARB E2 (2008 - 2013)
KYMCO COBRA/TOP BOY 50 2T AC CARB (1997 - 1999)
KYMCO COBRA/TOP BOY 50 2T EXCLUSIVE AC CARB (1997 - 1999)
KYMCO DINK 50 2T AC CARB E1 (1998 - 2003)
KYMCO DINK 50 2T AC CARB E2 (2003 - 2006)
KYMCO DINK 50 4T AC CARB E2 (2007 - 2013)
KYMCO DINK 50 4T LC CARB E1 (1998 - 2003)
KYMCO LIKE 50 4T AC CARB E2 (2009 - 2017)
KYMCO PEOPLE 50 2T AC CARB E1 (1999 - 2004)
KYMCO PEOPLE 50 2T AC CARB E2 (2003 - 2007)
KYMCO PEOPLE 50 2T AC CARB E3 (2007 - 2014)
KYMCO PEOPLE 50 2T S AC CARB E2 (2005 - 2017)
KYMCO PEOPLE 50 4T S AC CARB E2 (2006 - 2017)
KYMCO PEOPLE 50 4T S AC IE E4 (2018 - 2020)
KYMCO COBRA/TOP BOY 100 2T AC CARB E1 (1999 - 2003) Para variador original
KYMCO SUPER 9 50 2T AC CARB E1 (2001 - 2004)
KYMCO SUPER 9 50 2T LC CARB E1 (2000 - 2004)
KYMCO SUPER 9 50 2T LC CARB E2 (2004 - 2009)
KYMCO VITALITY 50 4T AC CARB E2 (2004 - 2010)
KYMCO HEROISM 125 4T AC CARB (1995 - 1997)
KYMCO TOP BOY 50 2T RACER AC CARB (1997 - 2002)
MALAGUTI CENTRO 4T 50 (1980 - 2022)
MALAGUTI CIAK MASTER 4T 50 (1980 - 2022)
PEUGEOT BUXY 50 2T AC CARB (1993 - 2002)
PEUGEOT ELYSEO 50 2T AC CARB E1 (1998 - 2001)
PEUGEOT ELYSEO 50 2T AC CARB E1 (2002 - 2003)
PEUGEOT JET FORCE 50 2T C-TECH LC CARB E2 (2005 - 2007)
PEUGEOT LOOXOR 50 2T AC CARB E1 (2001 - 2004)
PEUGEOT LOOXOR 50 2T CARGO AC CARB E1 (2001 - 2004)
PEUGEOT LOOXOR 50 2T AC TDSI E1 (2002 - 2004)
PEUGEOT LOOXOR 50 2T AC TDSI E2 (2005 - 2006)
PEUGEOT SQUAB 50 2T AC CARB (1995 - 1999)
PEUGEOT SPEEDAKE 50 2T AC CARB (1993 - 2002)
PEUGEOT SPEEDFIGHT 1 50 2T AC CARB (1997 - 1999)
PEUGEOT SPEEDFIGHT 1 50 2T LC CARB (1997 - 1999)
PEUGEOT SPEEDFIGHT 2 50 2T LC CARB E2 (2005 - 2008)
PEUGEOT SPEEDFIGHT 3 50 2T AC CARB E3 (2009 - 2015)
PEUGEOT SPEEDFIGHT 3 50 2T LC CARB E3 (2009 - 2014)
PEUGEOT ST RAPIDO 50 2T AC CARB (1985 - 1993)
PEUGEOT TREKKER 50 2T AC CARB (1997 - 1999)
PEUGEOT V-CLIC 50 4T AC CARB E3 (2007 - 2014)
PEUGEOT VIVACITY 3 50 2T AC CARB E3 (2008 - 2018)
PEUGEOT ZENITH 50 2T AC CARB (1993 - 2002)
PIAGGIO VELOFAX 50 2T AC CARB (1996 - 1999)
PIAGGIO DIESIS 50 2T AC CARB E2 (2004 - 2004)
PIAGGIO DIESIS 50 2T 25KM/H AC CARB E2 (2004 - 2004)
PIAGGIO FLY 50 2T AC CARB E2 (2004 - 2005) Para 5214111
PIAGGIO FLY 50 2T AC CARB E2 (2006 - 2009) Para 5214111
PIAGGIO FLY 50 2T AC CARB E2 (2010 - 2011) Para 5214111
PIAGGIO FLY 50 4T 2V AC CARB E2 (2006 - 2007)
PIAGGIO FLY 50 4T 2V AC CARB E2 (2008 - 2011)
PIAGGIO FLY 50 4T 2V AC CARB E2 (2013 - 2015) Para 5214111
PIAGGIO LIBERTY 50 2T AC CARB E1 (1998 - 2003)
PIAGGIO LIBERTY 50 2T RST AC CARB E2 (2004 - 2005)
PIAGGIO LIBERTY 50 2T RST AC CARB E2 (2006 - 2006)
PIAGGIO LIBERTY 50 2T SPORT AC CARB E2 (2006 - 2006)
PIAGGIO LIBERTY 50 2T SPORT AC CARB E2 (2007 - 2008)
PIAGGIO LIBERTY 50 2T MOC AC CARB E2 (2009 - 2013)
PIAGGIO LIBERTY 50 2T PTT/DELIVERY AC CARB E1 (1999 - 2004)
PIAGGIO LIBERTY 50 4T RST AC CARB E2 (2004 - 2005)
PIAGGIO LIBERTY 50 4T MOC AC CARB E2 (2009 - 2016)
PIAGGIO LIBERTY 50 4T 25KM/H AC IGET E3 (2016 - 2017)
PIAGGIO LIBERTY 50 4T AC IGET E4 (2018 - 2020) Para 5214111
PIAGGIO LIBERTY 50 4T 25KM/H AC IGET E4 (2018 - 2020) Para 5214111
PIAGGIO LIBERTY 50 4T AC IGET E5 (2020 - 2024)
PIAGGIO LIBERTY 50 4T AC IGET E5+ (2025 - 2025)
PIAGGIO LIBERTY 50 4T SPORT AC IGET E5+ (2025 - 2025)
PIAGGIO NRG 50 MC2 2T DD AC CARB (1997 - 1997) Para 5214111
PIAGGIO NRG 50 MC2 2T EXTREME DD LC CARB E1 (1999 - 1999) Para 5214111
PIAGGIO NRG 50 POWER 2T DT AC CARB E2 (2005 - 2006)
PIAGGIO NRG 50 POWER 2T DT AC CARB E3 (2007 - 2015)
PIAGGIO ZIP 50 2T SP2 LC CARB E1 (2001 - 2001)
PIAGGIO ZIP 50 2T SP2 LC CARB E1 (2001 - 2005)
PIAGGIO ZIP 50 2T SP2 LC CARB E2 (2006 - 2013)
PIAGGIO ZIP 50 2T AC CARB E2 (2009 - 2014)
PIAGGIO ZIP 50 4T SPORT AC IGET E5 (2021 - 2024)
SYM DD 50 2T AC CARB E1 (2002 - 2002)
SYM JET 50 2T SPORT X R AC CARB E2 (2006 - 2011)
SYM SYMPLY 50 4T AC CARB E2 (2007 - 2017)
VESPA ET4 50 4T AC CARB E1 (2000 - 2003)
VESPA ET4 50 4T AC CARB E2 (2003 - 2004)
VESPA LX 50 4T 4V AC CARB E2 (2009 - 2013)
VESPA PRIMAVERA 50 4T 3V 25KM/H AC IE E4 (2017 - 2020)
VESPA PRIMAVERA 50 4T 3V AC IE ABS E5 (2020 - 2021)
VESPA SPRINT 50 4T 3V 25KM/H AC IGET E4 (2018 - 2020)
VESPA SPRINT 50 4T 3V AC IGET E4 (2018 - 2020)
VESPA SPRINT 50 4T 3V AC IGET E5 (2021 - 2023)
VESPA SPRINT 50 4T 3V 25KM/H AC IGET E5 (2021 - 2023)
WT MOTORS BILBAO 50 (2011 - 2019) /
